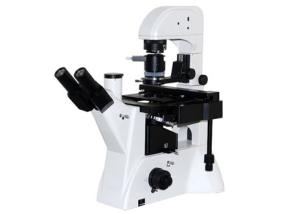

Trinocular DIC Science Lab Microscope Quality WF10X/22mm 5W LED

Brand Name : Phidix

Model Number : M13105

Certification : IATF16949，CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : 1 PC/Carton

Color : White

Customization : OEM, ODM

Packing : 1 PC/Carton

Warranty : 1 year

Drawtube : Trinocular

Theory : Biological Microscope

Lead-time : 15-20 Work Days

Optical system : Infinity Achromatic Optical System

Eyepiece : WF10X/22mm

Nosepiece : 5 Position

Objective : 5X/10X/20X/40X

Focusing : Coaxial Coarse and fine Focusing

Illumination : 5W LED

Contact Now

Trinocular Laboratory Cell Culture Observing Inverted DIC Biological Microscope

M13105 Trinocular Laboratory Cell Culture Observing Inverted DIC Biological Microscope It is an inverted biological microscope, which is ideal design for cell culture observing. It sets new standards in advanced imaging with its compact frame, outstanding optical performance and exceptional flexibility.

Features:

- Cell culture is very important in life science and biological research.

- To observe cell in culture vessel, check and observe the cell culturing and splitting status, an inverted biological is needed.

- With a camera researcher, it can take a picture or record a video and save it in a computer for analysis.

Item Description / Value
Optical system: Infinity Plan Achromatic optical system
Observation: Bright field, DIC.
View tube: Trinocular phototube tube, 30 ° inclining. IPD adjustment: 54mm ~ 75mm, Diopter adjustment: ± 5
Nosepiece: 5-position
Objective: Long working distance Infinity Plan Achromatic objective: 5X, 10X, 20X, 40X.
Condenser: Universal condenser for bright field, DIC. N.A. 0.3.
Stage: Flex M Frame Stage with Inserts for Specimens, Slides, Chambers and Petri Dishes. Double layer mechanical stage. Stage size:224× 208mm, moving range: 80mmx135mm
Focusing system: Coarse and fine focusing system. It is low-hand ergonomic designed for comfortable using. Safety stops for protecting the coaxial control from turning too far. The tightness of the knobs are adjustable according to the habit of the user.
Illumination: 5W LED illumination. Brightness adjustable. With built-in Heat reflecting filter.
Camera adapter: 0.5X or 1X.
Camera: Optional.

Trinocular DIC Science Lab Microscope Quality WF10X/22mm 5W LED
